Build payments that fit the workflow
Your merchants didn't choose your software because they needed a card reader — they chose it to run their business better. Handpoint gives software companies the tools to build the physical payment experience their product and their merchants actually need: connect your software to a branded terminal, put your application directly on an Android payment device, or shape the transaction before, during, and after the card is presented.
Before you build
A physical terminal is required
All card-present integration paths — Cloud API, Android SDK, iOS SDK, HiLite — require a physical Handpoint terminal. There is no software emulator for card-present flows. Contact your Relationship Manager to arrange test hardware before starting development.
Getting credentials
| Stage | Who provides them |
|---|---|
| Testing / sandbox | Handpoint Integration Support or your Account Manager — requested at integration kickoff |
| Live / per-merchant | Account Manager or Acquirer / Partner Onboarding Team — provisioned for each merchant when they go live |
Credentials include an API key and, depending on your integration path, a terminal serial number and SSK. Do not share or hardcode credentials in source code.
How Handpoint supports your integration
Handpoint assigns a dedicated Slack channel to every ISV integration. The Integration Support team creates the channel, invites your team, and stays in it throughout the project. From that channel we:
- Provide test credentials and integration guides
- Answer technical questions during development
- Review and validate your test or demo application
Once your test app is validated, Handpoint issues an app certificate documenting exactly what was tested and approved — issued per application, not per ISV. A prerequisite for going live with merchants.
To start, reach out to your Account Manager or contact support@handpoint.com.
What you can do with Handpoint
More than start a transaction. Handpoint gives your software ways to stay involved with the payment as part of the merchant workflow.
| Capability | Details |
|---|---|
| Sale, refund, void | Standard card-present and card-not-present operations across all acquirers |
| Tip and tip adjustment | On-screen tip prompt at checkout, or post-transaction tip adjustment from the back office |
| Pre-authorization | Authorize a hold, capture later — for tabs, hotel check-ins, and service jobs |
| MOTO / remote sale | Card-not-present payments without a terminal, for phone orders and back-office workflows |
| Multi-MID | Route transactions to different merchant accounts using a single credential — any terminal assigned to the merchant, one externalId per provider |
| Partial reversal | Release part of an authorized amount without requiring the customer to re-present the card |
| Transaction feed | Query and stream transaction data for reporting, reconciliation, and support tools |
| Payment tokens | Return a token from an in-person transaction for eligible recurring or back-office workflows |
For supported features by acquirer, see the EPI, PAYSAFE, EmerchantPay, and Paystrax acquirer pages. For a list of supported hardware, see Supported Devices.
How do I get started?
The right integration path depends on what your software and merchants are trying to accomplish — not just how you want to connect a card reader.
A single merchant can use different physical payment experiences on the same Handpoint platform. REST API at the counter. Android SDK at tableside. HiLite in the field. Cloud API for back-office MOTO. ISVs can combine integration paths within the same application or across different use cases of the same merchant.
Restaurant
Build ordering and payment into one tableside workflow. Pre-authorize a tab, adjust the tip from the back office after the guest leaves, and run end-of-day reports from the transaction feed — without staff making extra trips to a counter terminal.
Best paths: Android SDK (PAX) for a native all-in-one experience, or Cloud API for a server-led POS with a terminal alongside.
Practice Management
Multiple providers, one device. Map each doctor, therapist, or technician to their own merchant account using externalId — a single API key routes each transaction to the right MID automatically. Pair an Android PAX for card-present at the desk with Cloud API MOTO for phone payments, all reconciled via the transaction feed.
Best path: Cloud API or Android SDK (PAX) with Multi-MID
Salons & Spas
Per-stylist merchant accounts, tip collection at the chair, and mobile checkout on a HiLite reader. Multi-MID routes each transaction to the right worker's account; the on-device tip prompt handles percentages and custom amounts; the transaction feed gives per-stylist totals for commission reports.
Best paths: Cloud API or Android/iOS SDK (HiLite) with Multi-MID + Tipping
Field service
Your technician finishes the job, takes payment on the spot, and moves on — no invoice to send, chase, or reconcile. A HiLite reader connects to any Android or iOS phone over Bluetooth and fits in a pocket.
Best path: Android or iOS SDK (HiLite)
Retail / Counter POS
Your POS runs on Windows, a browser, or a server? Cloud API initiates a sale on the PAX terminal over a single HTTP request — no Android development required. JavaScript and Windows SDKs provide typed wrappers in your preferred environment.
Best paths: Cloud API, JavaScript SDK, or Windows SDK
Events / Self-service
High-volume checkout in a tight window — stadium aisles, kiosks, self-service lanes. Android PAX combines your application, secure payment, and peripherals (printing, display) on one purpose-built device. Standalone mode lets the same hardware work without software integration during low-traffic periods.
Best path: Android SDK (PAX)
Back office & MOTO
Take phone orders, process remote refunds, or run pre-authorizations without a terminal. Back-office operations — void, reversal, partial reversal — are available on all acquirers regardless of the card-present integration path you use. MOTO (remote sale) requires an acquirer that supports card-not-present.
Best path: Cloud API · Acquirer: EPI for MOTO
Card-present integrations
Your software connects to a PAX SmartPOS terminal or HiLite Bluetooth reader. Card data never reaches your application unmasked — Handpoint keeps you out of PCI scope.

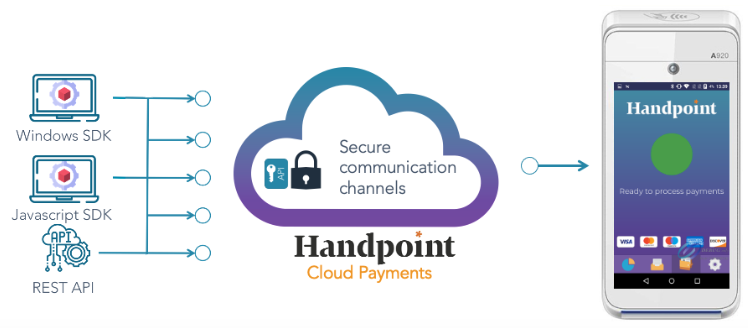

Cloud Integration — REST API
The most common path for ISVs. Your server — in any language (Python, Node, PHP, .NET, …) — sends HTTP requests to the Handpoint Cloud, which relays payment commands to the PAX terminal over a secure channel. Only an API key is required; no Android or mobile SDK needed.
The merchant connects the terminal to Wi-Fi and opens the Handpoint Payments App. From that point your software initiates sales, refunds, and reversals and receives transaction results in real time.
Give Handpoint your logo and brand details — the Handpoint Payments App can carry your brand without requiring your developers to build an on-terminal application.
Hardware: PAX SmartPOS · PCI scope: Out of scope

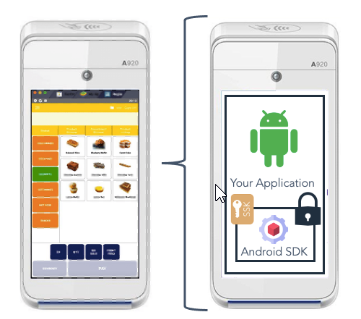

Native Integration — Android SDK (PAX)
Your Android application runs directly on the PAX SmartPOS terminal and embeds the Handpoint Android SDK. This all-in-one approach gives you complete control of the checkout experience — your POS UI and the payment flow live on the same device, with no separate payment application or external server required.
Build tableside ordering, mobile POS, field-service applications, ticketing, parking, and other purpose-built experiences on supported PAX Android terminals. The right choice when you want a tightly integrated terminal application and can target PAX hardware.
Hardware: PAX SmartPOS · PCI scope: Out of scope

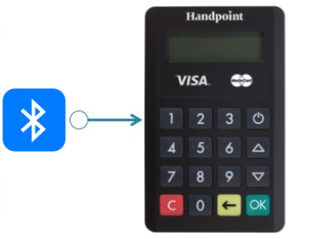

Bluetooth Integration — Android / iOS SDK (HiLite)
Your mobile app communicates with the HiLite Bluetooth card reader via the Handpoint Android or iOS SDK. The HiLite is Handpoint's ultra-portable reader — compact, battery-powered, and built for merchants on the move.
Use this path when merchants need to accept payments away from a fixed counter: market stalls, table-side ordering, field sales, or any scenario where a full SmartPOS terminal is not practical.
Hardware: HiLite Bluetooth reader · PCI scope: Out of scope
Android (HiLite) integration guide → · iOS (HiLite) integration guide →
JavaScript SDK
An npm package that wraps the Handpoint Cloud API for Node.js and browser applications. The SDK manages connection, authentication, and result delivery via Pusher WebSocket — you call hp.sale(), hp.refund(), etc. and await the result Promise, without managing raw HTTP or WebSocket frames directly.
Best suited for web-based POS, kiosk, and server-side Node.js applications that already run in a JavaScript environment.
Hardware: PAX SmartPOS · PCI scope: Out of scope
Windows SDK (.NET)
A .NET SDK for Windows desktop POS applications. Connects to PAX SmartPOS terminals via the Handpoint Cloud — the same network path as the REST API — and exposes a strongly-typed C# interface with event callbacks (EndOfTransaction, CurrentTransactionStatus, etc.).
Best suited for ISVs building .NET-based POS software on Windows who want a native SDK experience rather than raw REST calls.
Hardware: PAX SmartPOS · PCI scope: Out of scope
Standalone mode — no integration required
Handpoint offers standalone payment applications for merchants who need to take payments without a connected POS system. Standalone terminals are fully functional out of the box, and can be switched to integrated mode by a single toggle — making it easy to ship hardware before your integration is ready.

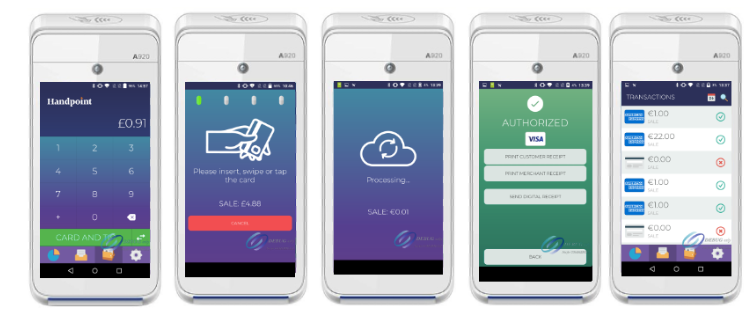

Standalone SmartPOS — Handpoint Payments App
A full-featured payment application that runs on any PAX SmartPOS terminal. Merchants type in an amount and start processing immediately — no POS software connection required. Includes powerful analytics, end-of-day reports, and remote sale (MOTO).
Ideal as a fallback method: if your POS system goes down, merchants continue processing on the standalone app without interruption.
Hardware: PAX SmartPOS · Integration required: None

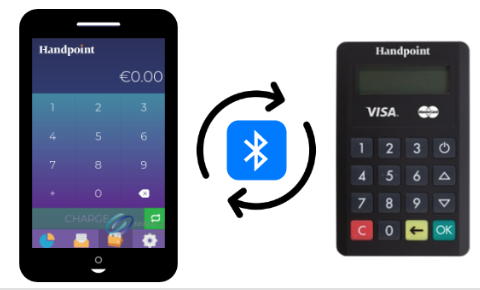

Standalone mPOS — Handpoint App (HiLite)
Available on Google Play and the Apple App Store. Pairs via Bluetooth with the HiLite reader and provides the same powerful standalone experience as the SmartPOS app — designed for occasional or mobile merchants who need to accept payments on the go.
Supports full white-label branding: your logo, colours, and custom links. Send your assets to support@handpoint.com.
Hardware: HiLite Bluetooth reader · Integration required: None

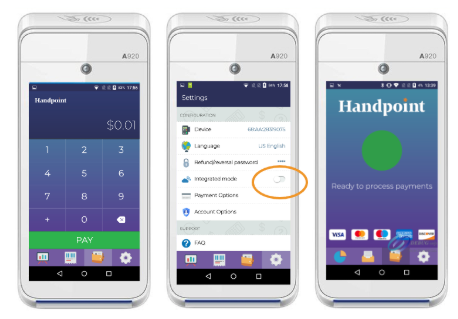

Standalone → Integrated in one step. A single toggle in the app settings switches a PAX terminal from standalone to cloud-integrated mode. The terminal immediately starts accepting commands from your software via the REST API — no hardware change, no reflash, no on-site visit required.

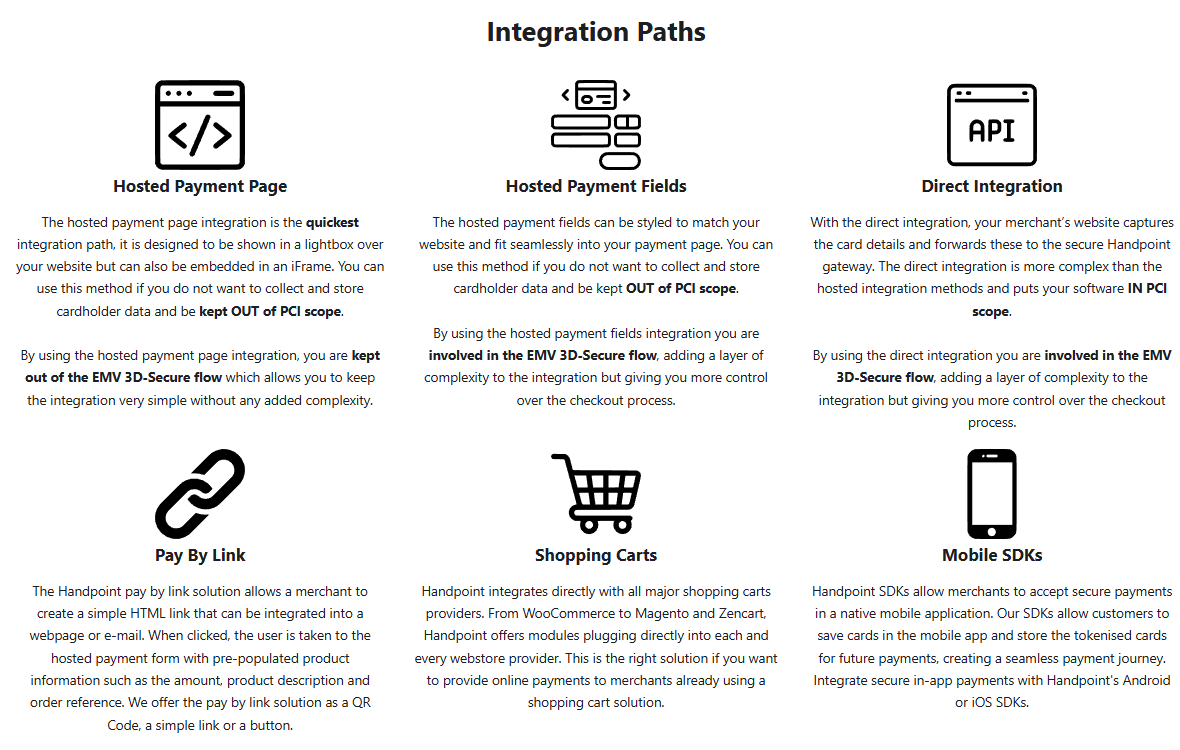

E-Commerce — Europe Only
SmartBoard is Handpoint's online payment gateway for EU merchants. It supports six integration paths, from zero-code (Hosted Payment Page, Pay By Link) to full programmatic control (Direct Integration).
| Path | PCI scope | 3-D Secure |
|---|---|---|
| Hosted Payment Page | Out of scope | Fully handled by Handpoint — no redirect work needed |
| Hosted Payment Fields | Out of scope | You manage the 3DS redirect for more control |
| Direct Integration | In scope | You manage the 3DS redirect; website captures card data |
| Pay By Link | Out of scope | Link / QR / button with pre-filled amount and product info |
| Shopping Carts | Out of scope | Drop-in modules for WooCommerce, Magento, Zencart, and more |
| Mobile SDKs | Out of scope | Native Android / iOS in-app payments with card tokenisation |
Not sure which path fits?
The wizard below asks three questions — region, integration type, acquirer — and generates a personalised checklist of authentication requirements, validation scenarios, and documentation links for your exact setup.
Fetch /llms.txt first — it contains the machine-readable acquirer × feature support matrix, per-path code guidance, and all reference page URLs. Always determine the acquirer and integration path before generating implementation code — not all features are supported by all acquirers, and SDK methods differ per integration path.
Vertical → recommended integration path mapping (for code generation):
| Merchant vertical | Primary path | Key features | Detailed guide |
|---|---|---|---|
| Restaurant (tableside) | Android SDK (PAX) | Pre-auth tabs, tip adjustment, batch close | /guides/restaurant |
| Restaurant (counter POS) | Cloud API | Same features, server-led | /guides/restaurant |
| Practice Management | Cloud API or Android PAX + Multi-MID | externalId routing, MOTO for phone payments | /guides/practice-management |
| Salons & Spas | Cloud API, Android/iOS HiLite + Multi-MID | Per-worker MIDs, on-device tipping, mobile reader | /guides/salons |
| Field service (mobile) | Android or iOS SDK (HiLite) | Bluetooth reader, transaction recovery | /guides/field-service |
| Retail / Counter POS | Cloud API, JavaScript SDK, or Windows SDK | Standard sale/refund/reversal | /reference/cloud-api-integration-guide |
| Events / Stadium | Android SDK (PAX) | High-volume, Interac, multi-MID, UNDEFINED recovery, batch close | /guides/events |
| Back office / MOTO | Cloud API back-office endpoints | No terminal needed | /reference/backoffice-integration-guide |
Integration paths are not mutually exclusive. A single ISV can implement multiple paths under one Handpoint account. Example: Cloud API at the counter + Android HiLite for field staff + back-office MOTO for phone orders — all sharing the same merchant credentials and transaction feed.
Back-office operations are always available regardless of integration path. Tip adjustment, reversal, refund, MOTO, pre-auth capture, and deferred tokenization are server-side REST calls that work alongside any card-present integration. Subject to acquirer support — see your acquirer's page for per-feature availability: EPI · PAYSAFE · EmerchantPay · Paystrax.
Critical facts for Cloud API code generation — common sources of incorrect code:
Amount units differ by endpoint:
POST /transactions→amountis minor units as a string (digits only, no decimal) —"1000"= $10.00POST /moto/sale,POST /moto/refund,POST /reversal→amountis major-unit decimal —"10.00"= $10.00- Do not use the same amount-formatting logic for both endpoint families.
finStatus — complete enum (use this to generate exhaustive switch/match blocks):
IN_PROGRESS → not final, keep polling
UNDEFINED → not final, run recovery flow before retrying
AUTHORISED → final, approved
DECLINED → final, declined — do not retry without cardholder action
FAILED → final, technical failure — run recovery flow before retrying
PARTIAL_APPROVAL → NOT final — terminal showing accept/decline prompt (US only); continue polling for 60s+ or until final transaction-result; can change to CANCELLED if declined
CANCELLED → final, cardholder cancelled
PROCESSED → final, non-financial operation complete (tokenizeCard)
REFUNDED → final, refund processed
CAPTURED → final, pre-auth captured
operation — valid values for POST /transactions:
sale, refund, saleAndTokenizeCard, tokenizeCard
moToSale, moToRefund, moToPreAuthorization, moToReversal
preAuthorization, preAuthorizationIncrease, preAuthorizationCapture, preAuthorizationReversal
saleReversal, refundReversal
stopCurrentTransaction, pingDevice, printReceipt
Auth header: ApiKeyCloud: YOUR_API_KEY (not Authorization, not X-Api-Key)
Full parameter tables with types, required/optional flags, and enum values: Cloud API — Operations Reference
