Supported devices
All Handpoint card-present integrations require a physical payment terminal.
| Family | Connection | Integration paths |
|---|---|---|
| PAX | Wi-Fi / 4G / Ethernet | Android SDK (native on-terminal), REST API (integrated mode) |
| HiLite (DATECS) | Bluetooth | Android SDK (HiLite BT), iOS SDK (HiLite BT), Cordova |
PCI compliance
Please reference the PCI SSC website to adhere to all PCI and card brand guidelines for your terminal deployment.
Filtering by market
Use the Market filter above the gallery to show only devices deployed in a specific region. Region and Deployed with rows reflect observed production transactions (2023–2026 Handpoint data) — all devices support all acquirers in principle.
HiLite
MPED400
Bluetooth
USEU
PAX A920
PAXA920
PrinterWi-Fi 2.4G4G
USEU
PAX A920 Pro
PAXA920PRO
PrinterWi-Fi 2.4GWi-Fi 5G4G
USEU
PAX A920 MAX
PAXA920MAX
PrinterWi-Fi 2.4GWi-Fi 5G4G
USEU
PAX A930
PAXA930
PrinterWi-Fi 2.4GWi-Fi 5G4G5G
USEU
PAX A910 / A910S
PAXA910 · PAXA910S
PrinterWi-Fi 2.4G4G
EU
PAX A77
PAXA77
Wi-Fi 2.4G4G
US
PAX A960
PAXA960
PrinterWi-Fi 2.4GWi-Fi 5G4G
EU
PAX A80
PAXA80
PrinterWi-Fi 2.4GEthernet
USEU
PAX A800
PAXA800
PrinterWi-Fi 2.4GEthernet
USEU
PAX A8700
PAXA8700
PrinterWi-Fi 2.4GWi-Fi 5G4GEthernet
EU
PAX A8900
PAXA8900
PrinterWi-Fi 2.4GWi-Fi 5G4GEthernet
EU
PAX A3700
PAXA3700
Wi-Fi 2.4GWi-Fi 5G4GEthernet
US
Elys Workstation (A3700 + L1400 tablet) — recommended E800 replacement
PAX A6630
PAXA6630
Wi-Fi 2.4GWi-Fi 5G4G
SDK v7.1011.0+
PAX A6650
PAXA6650
Wi-Fi 2.4GWi-Fi 5G4G
US
PAX A60
PAXA60
Wi-Fi 2.4G4G
US
PAX A35
PAXA35
Wi-Fi 2.4G
USEU
PAX A50 / A50S
PAXA50 · PAXA50S
Wi-Fi 2.4G4G
EU
PAX A30
PAXA30
Wi-Fi 2.4G
USEU
PAX ARIES6 / ARIES8
PAXARIES6 · PAXARIES8
Wi-Fi 2.4GWi-Fi 5G4GEthernet
EU
PAX E500
PAXE500
Wi-Fi 2.4GEthernet
PAX E700
PAXE700
PrinterWi-Fi 2.4GEthernet
PAX E800EOL
PAXE800
PrinterWi-Fi 2.4GEthernet
EOL — upgrade to PAX A3700 + L1400 (Elys Workstation)
PAX IM25
PAXIM25
Wi-Fi 2.4G4G
USEU
SDK v7.1009.5+
PAX IM30
PAXIM30
Wi-Fi 2.4GEthernet
USEU
Detailed specifications

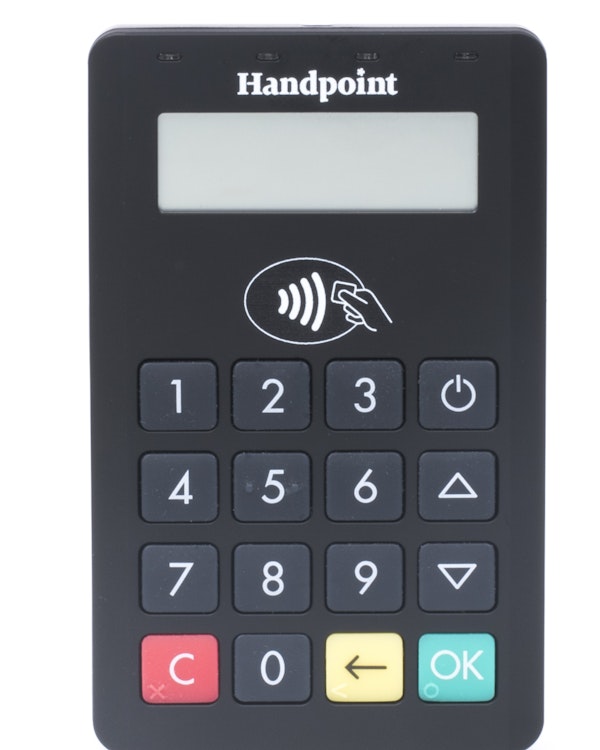

HiLite (DATECS)
Bluetooth card reader manufactured by DATECS. Connects wirelessly to an Android or iOS host device running the Handpoint SDK. Comes pre-injected for the Handpoint production environment with a TEST/DEMO merchant for development. Request a device from your referring partner — see Development hardware.
HiLite
| TMS device type | MPED400 |
| Region | US / Canada + Europe |
| Connection | Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |
| Integration paths | Android SDK (HiLite BT), iOS SDK (HiLite BT), Cordova |
| Deployed with | Paysafe (US), Lloyds (EU) |
PAX terminals
Android-based smart terminals. Support two integration paths: Android SDK (code runs natively on the device) or REST API (your POS calls the Handpoint Cloud, which commands the terminal in integrated mode). PAX production devices reject unsigned APKs — a PAX debug device is required for SDK development. See Development hardware.
PAX A920
| TMS device type | PAXA920 |
| Region | US / Canada + Europe |
| Form factor | Handheld smart terminal with printer |
| Connectivity | Wi-Fi 2.4GHz, 4G, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |
| Handpoint Android SDK | v6.6.7+ |
| Deployed with | Paysafe (US), EmerchantPay (EU) |

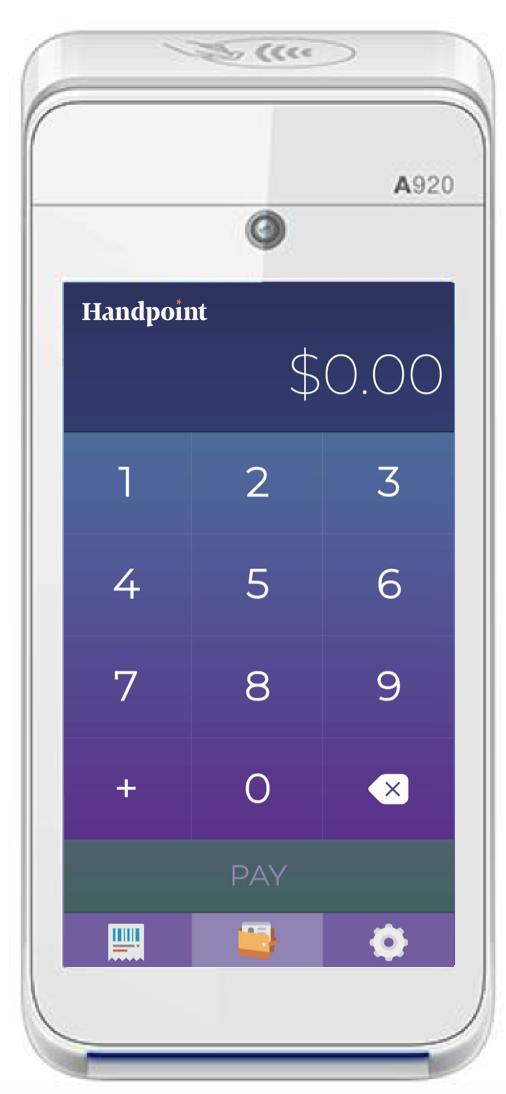

PAX A920 Pro
| TMS device type | PAXA920PRO |
| Region | US / Canada + Europe |
| Form factor | Handheld smart terminal with printer |
| Connectivity | Wi-Fi 2.4/5GHz, 4G, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |
| Handpoint Android SDK | v6.6.7+ |
| Deployed with | Paysafe (US), EmerchantPay (EU) |

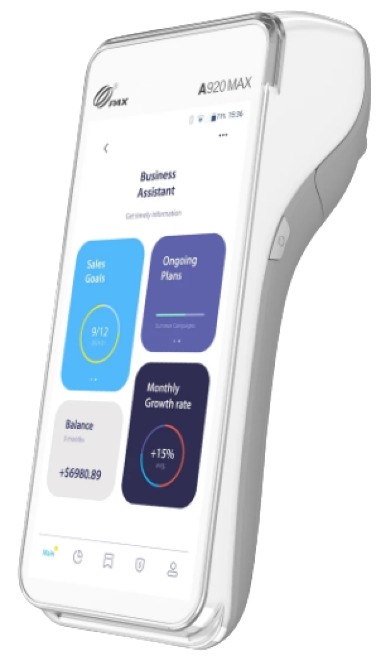

PAX A920 MAX
| TMS device type | PAXA920MAX |
| Region | US / Canada + Europe |
| Form factor | Handheld smart terminal with printer (large screen) |
| Connectivity | Wi-Fi 2.4/5GHz, 4G, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |

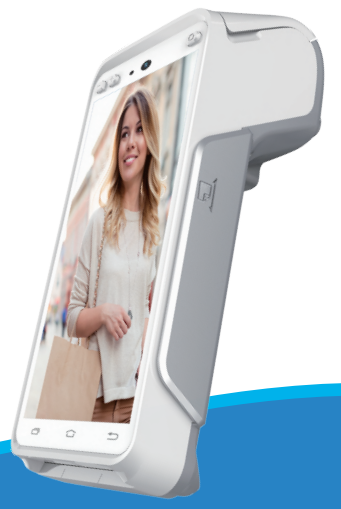

PAX A930
| TMS device type | PAXA930 |
| Region | US / Canada + Europe |
| Form factor | Handheld smart terminal with printer |
| Connectivity | Wi-Fi 2.4/5GHz, 4G, 5G, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |

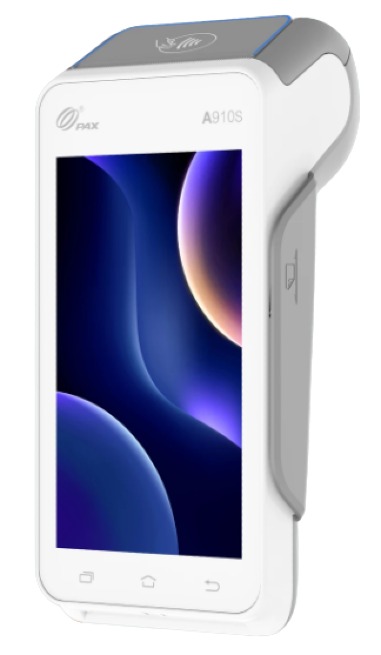

PAX A910 / A910S
| TMS device types | PAXA910, PAXA910S |
| Region | Europe |
| Form factor | Handheld smart terminal with printer |
| Connectivity | Wi-Fi 2.4GHz, 4G, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |

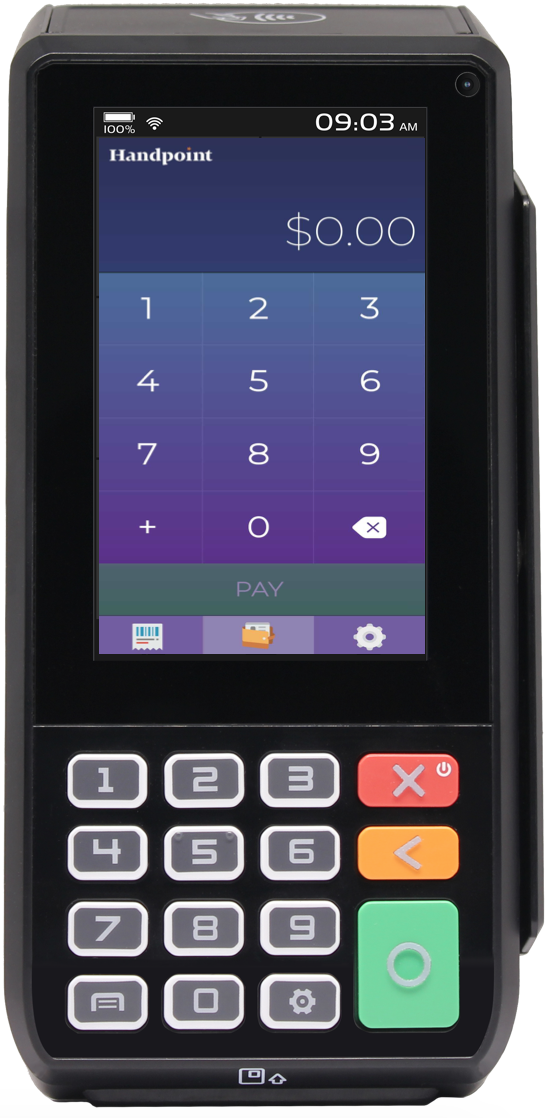

PAX A80
| TMS device type | PAXA80 |
| Region | US / Canada + Europe |
| Form factor | Countertop smart terminal with printer |
| Connectivity | Wi-Fi 2.4GHz, Ethernet, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |
| Handpoint Android SDK | v6.7.0+ |

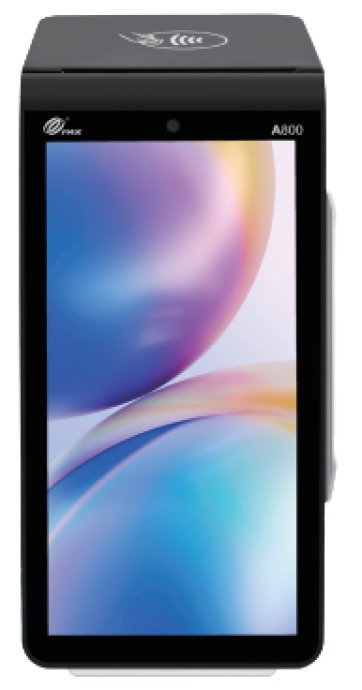

PAX A800
| TMS device type | PAXA800 |
| Region | US / Canada + Europe |
| Form factor | Countertop smart terminal with printer (large screen) |
| Connectivity | Wi-Fi 2.4GHz, Ethernet, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |
| Handpoint Android SDK | v7.1001.0+ |

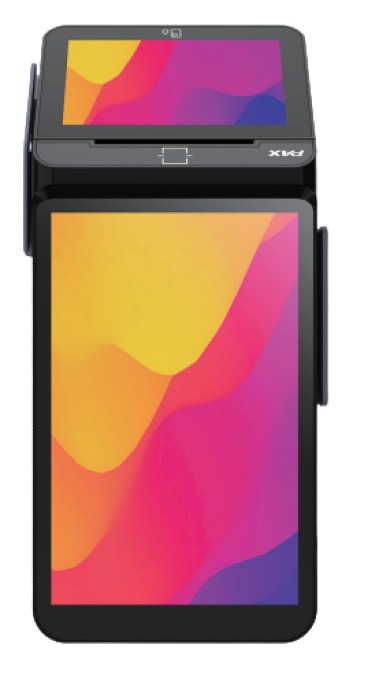

PAX A8700
| TMS device type | PAXA8700 |
| Region | Europe |
| Form factor | Countertop smart terminal with printer |
| Connectivity | Wi-Fi 2.4/5GHz, 4G, Ethernet, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |

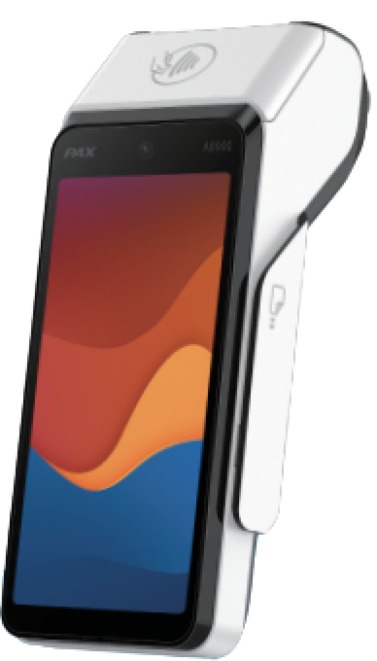

PAX A8900
| TMS device type | PAXA8900 |
| Region | Europe |
| Form factor | Countertop smart terminal with printer |
| Connectivity | Wi-Fi 2.4/5GHz, 4G, Ethernet, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |

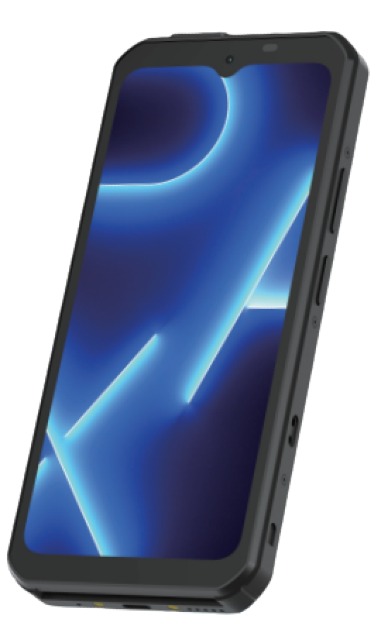

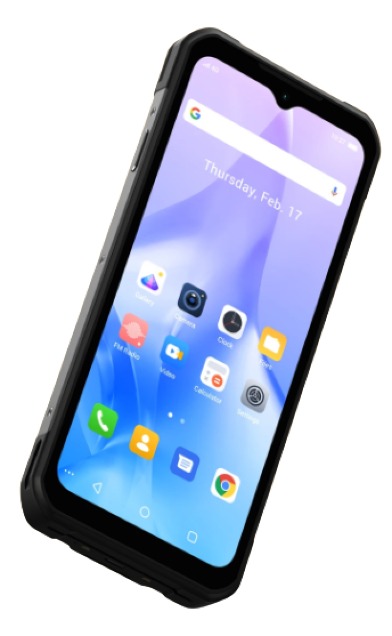

PAX A6630 / A6650
| TMS device types | PAXA6630, PAXA6650 |
| Region | US / Canada (A6650 observed in production) |
| Form factor | Handheld smart terminal (no printer) |
| Connectivity | Wi-Fi 2.4/5GHz, 4G, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |
| Handpoint Android SDK | v7.1011.0+ (A6630) |

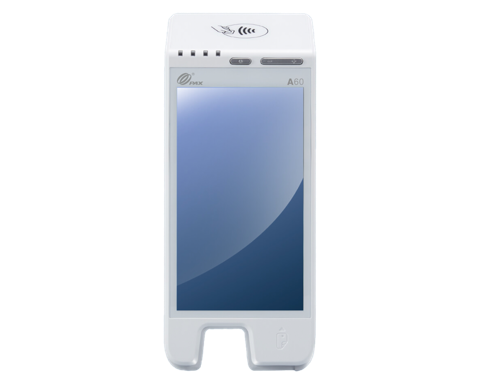

PAX A60
| TMS device type | PAXA60 |
| Region | US / Canada |
| Form factor | Compact handheld terminal (no printer) |
| Connectivity | Wi-Fi 2.4GHz, 4G, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |

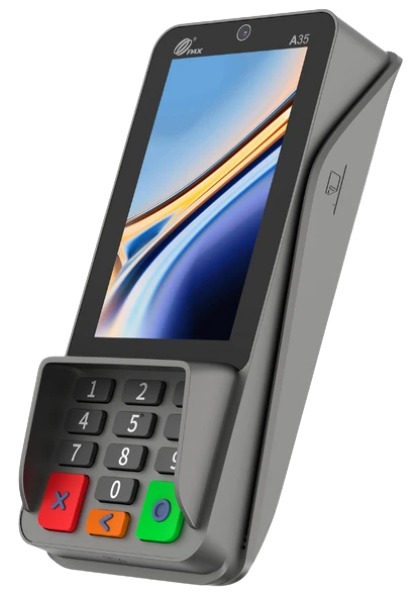

PAX A35
| TMS device type | PAXA35 |
| Region | US / Canada + Europe |
| Form factor | Compact handheld terminal (no printer) |
| Connectivity | Wi-Fi 2.4GHz, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |
| Handpoint Android SDK | v6.7.0+ |
| Deployed with | EPI (US), EmerchantPay (EU) |
PAX A50 / A50S
| TMS device types | PAXA50, PAXA50S |
| Region | Europe |
| Form factor | Compact handheld terminal (no printer) |
| Connectivity | Wi-Fi 2.4GHz, 4G, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |

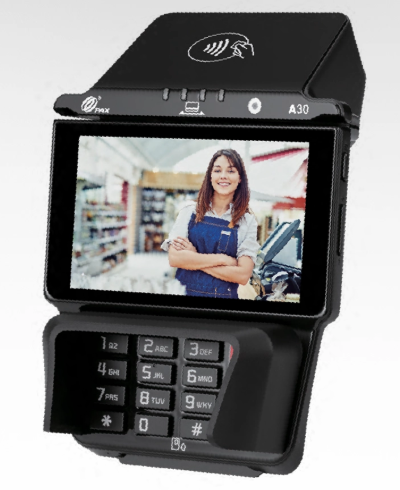

PAX A30
| TMS device type | PAXA30 (TMS inconsistency: currently stored as PAX30 — being corrected) |
| Region | US / Canada + Europe |
| Form factor | Entry-level smart terminal (no printer) |
| Connectivity | Wi-Fi 2.4GHz, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |

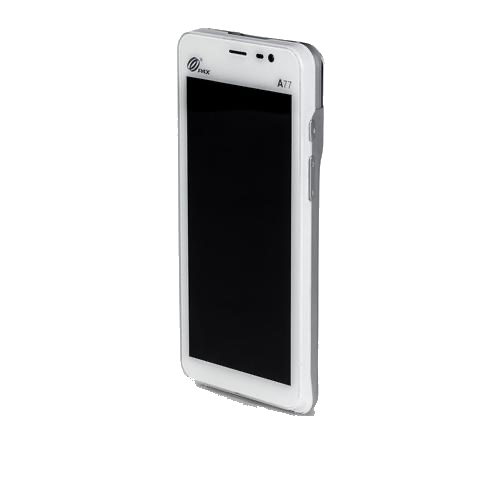

PAX A77
| TMS device type | PAXA77 |
| Region | US / Canada |
| Form factor | Handheld smart terminal with printer |
| Connectivity | Wi-Fi 2.4GHz, 4G, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |

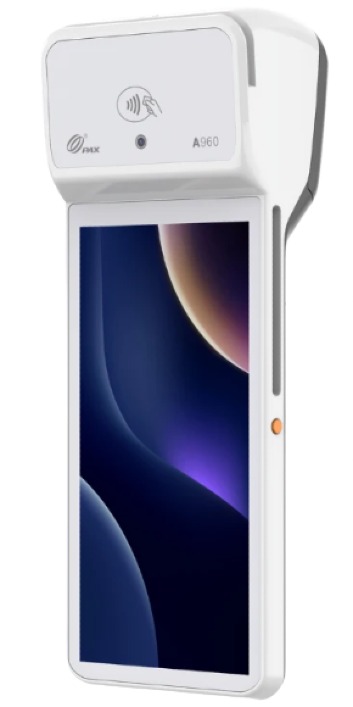

PAX A960
| TMS device type | PAXA960 |
| Region | Europe |
| Form factor | Handheld smart terminal with printer |
| Connectivity | Wi-Fi 2.4/5GHz, 4G, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |

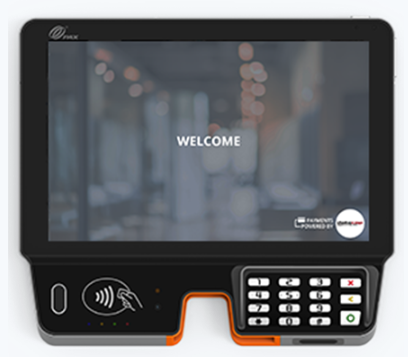

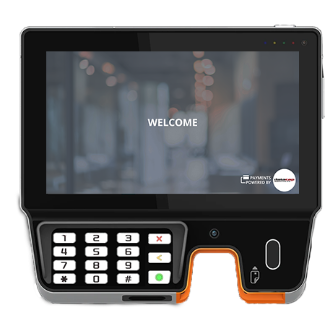

PAX ARIES6 / ARIES8
| TMS device types | PAXARIES6, PAXARIES8 |
| Region | Europe |
| Form factor | Biometric smart terminal (fingerprint reader) |
| Connectivity | Wi-Fi 2.4/5GHz, 4G, Ethernet, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe, fingerprint |

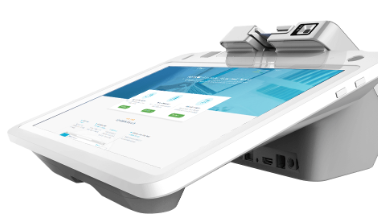

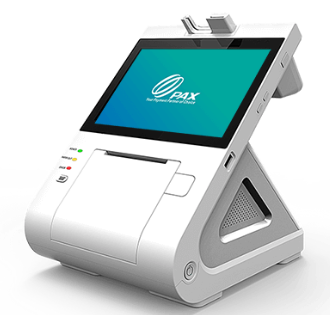

PAX E500 / E700
| TMS device types | PAXE500, PAXE700 |
| Form factor | ECR / integrated POS terminal |
| Connectivity | Wi-Fi 2.4GHz, Ethernet |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |
| Note | E700 includes built-in printer; E500 does not |

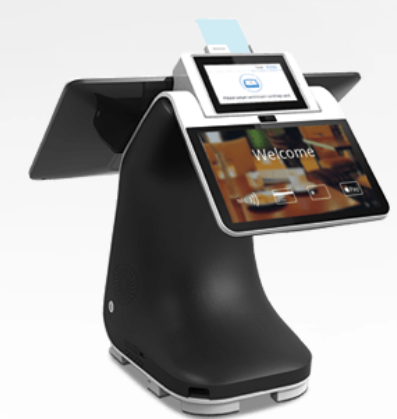

PAX E800 (End of Life)
End of Life
The PAX E800 has reached end of life. Now is the perfect time to upgrade to PAX's innovative Elys Workstation — the PAX A3700 combined with the L1400 tablet. Please reference the PCI SSC website to adhere to all PCI and card brand guidelines.
| TMS device type | PAXE800 |
| Form factor | ECR / integrated POS terminal with printer |
| Connectivity | Wi-Fi 2.4GHz, Ethernet |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |
| Replacement | PAX A3700 + L1400 (Elys Workstation) |

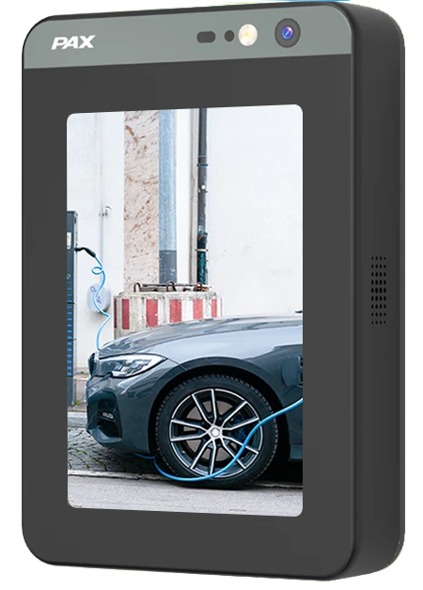

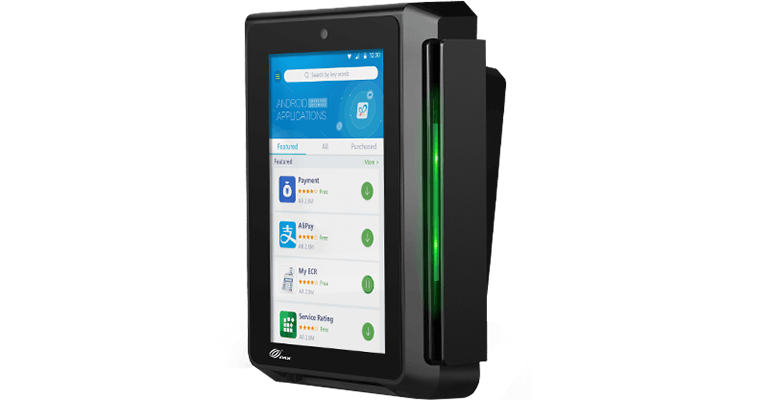

PAX IM25 / IM30
| TMS device types | PAXIM25, PAXIM30 |
| Region | US / Canada + Europe |
| Form factor | Integrated module / OEM (no printer) |
| Connectivity | IM25: Wi-Fi 2.4GHz, 4G · IM30: Wi-Fi 2.4GHz, Ethernet |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |
| Handpoint Android SDK | IM25: v7.1009.5+ |
| Deployed with | IM30: EmerchantPay (EU) |

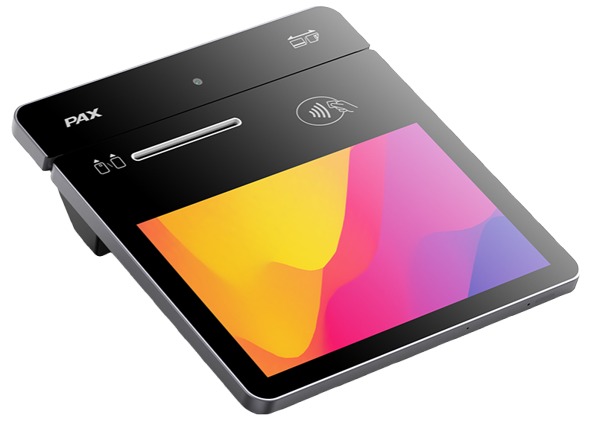

PAX A3700 (Elys Workstation)
| TMS device type | PAXA3700 |
| Region | US / Canada |
| Form factor | Portable countertop terminal with printer |
| Connectivity | Wi-Fi 2.4/5GHz, 4G, Ethernet, Bluetooth |
| Card entry | EMV chip, contactless (NFC), magnetic stripe |
| Handpoint Android SDK | v7.1010.6+ |
| Note | Part of the Elys Workstation (A3700 + L1400 tablet) — recommended upgrade for E800 |
